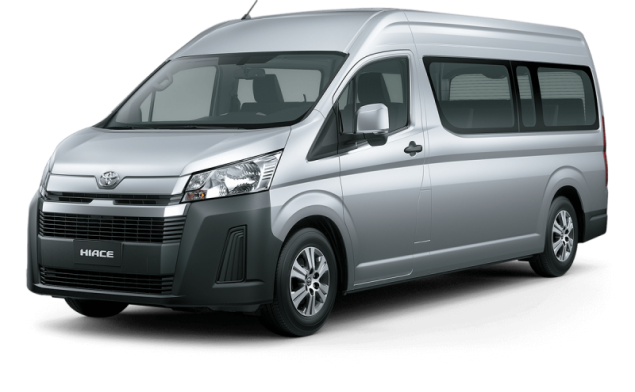

Hiace GD
Technical Specifications
ENGINE
- Displacement (cc) : 2755
- Fuel System : Direct injection
- Fuel type : Diesel
DIMENSIONS
- Dimensions (Lxwxh) in mm : 5265 x 1950 x 1990
- Ground clearance (mm) : 175,5
- Wheelbase (mm) : 3210
TRANSMISSION
- Gearbox : Manual
- Transmission : Front 2 WD
WEIGHT/CAPACITIES
- Curb weight (kg) : 2185
- Fuel tank capacity (L) : 70
WARRANTY
- Manufacturer Warranty :
- Retail Network : TOYOTA
Models available
TOYOTA ACE 2.8L COMMUTER
Air conditioning
Airbags
Connectivity
Fog lamps
Hill-start assist control
Immobilizer
Power windows
Spare wheel
Spare Wheel Location
Hiace GD TOYOTA ACE 2.8L COMMUTER
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2755 |
| Engine Type | Cylinder in line |
| Fuel type | Diesel |
| Max power HP/rpm | |
| Max power kW/rpm | 115/3600 |
| Max torque Nm | |
| Number of cylinders | 4 |
 BODY |
|
| Body style | Van |
| Keys Type | Classic |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 5920 x 2100 x 2280 |
| Front tread (mm) | 1678 |
| Ground clearance (mm) | 183.5 |
| Rear tread (mm) | 1671 |
| Turning radius (m) | 6.4 |
| Wheelbase (mm) | 3860 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Front 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 2643.88 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3810 |
| Number of seats | 14 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
 SUSPENSIONS |
|
| Front suspension | MacPherson strut |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Torsion bar |
 TYRES |
|
| Type pneu | Normal |
| Tyre dimension | 235/65R16C,7J 115T AL |
 PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | 165 |
 CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
Equipments
INTERIOR & COMFORT |
|
| 2nd row seats | Fixed |
| 3rd row seats | Fixed |
| Adjustable steering wheel | Height and reach adjustable |
| Air conditioning | Manual |
| Audio system | JBL |
| Central door locking | Yes |
| Connectivity | Bluetooth, Aux, USB |
| Cup holder(s) | Rear, Front |
| Driver seat | Height and reach adjustable |
| Front seats | 2 |
| Loud speakers | 6 |
| Power Steering | Yes |
| Power windows | Front |
| Radio | Radio CD |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Upholstery | Fabric |
EXTERIOR |
|
| Adjustable side mirrors | Electric |
| Bumper - Front&Rear | Body colour |
| Door handles | Body colour |
| Door mirrors | Body colour |
| Folding side mirrors | Electric |
| Front bumpers | Body colour |
| Front grill | Black |
| Rear bumpers | Body colour |
| Wheels | Alloy |
| Windscreen | Laminated |
PASSIVE SAFETY |
|
| Airbags | Driver, Passenger |
| Anti-theft alarm | Yes |
| Headrests | Front, Rear |
| Number of spare wheels | 1 |
| Seatbelt pretentioner | Front |
| Seatbelts - 2nd row | 3 points |
| Seatbelts - 3rd row | 3 points |
| Seatbelts - Front | 2 x 3 points |
| Seatbelts – Rear | 3 points |
| Spare wheel | Alloy |
| Spare Wheel Location | Under the Vehicle |
ACTIVE SAFETY |
|
| Fog lamps | Front |
| Headlamps | Halogen |
| High position brake lamp | Yes |
| Hill-start assist control | Yes |
| Immobilizer | Yes |
| Seatbelt warning | Yes |
